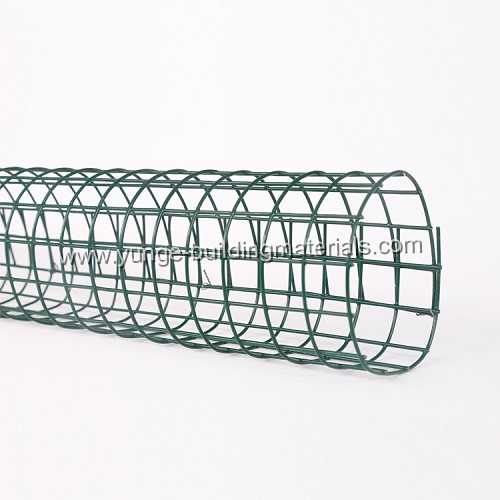

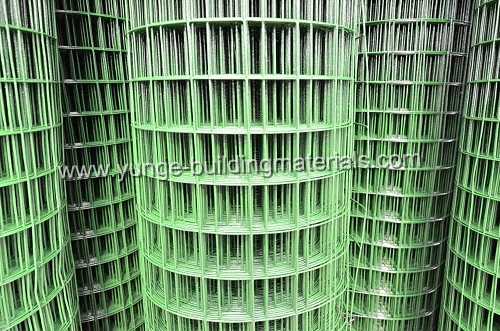

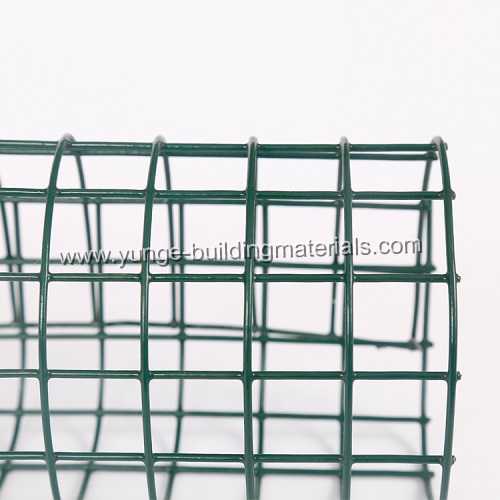

PVC coated welded wire mesh

Material:Low carbon steel wire, galvanized wire and stainless steel wire
Length:30m,100 feet
Mesh opening:12.5*12.5mm 1/2
Width:0.5-1.2m
Product description：
INQUIRY

PVC coated welded wire mesh

Quick Details

Material:Low carbon steel wire, galvanized wire and stainless steel wire

Diameter:bwg 15-21 gauge,0.8-1.8mm

Mesh opening:12.5*12.5mm 1/2 inch galvanized welded wire mesh

Width:0.914m 3 feet

Length:30m,100 feet

Surface:PVC coated

Supply Ability:15000 Square Meters per Month

Lead time: 7-30 Days(Depend on your quantity)

Wire mesh fence production process:Wire drawing, annealing, rust removing, acid washing, Fencing wire Cleaning, Drying, Welded Black fence panel, Galvanizing, CleaningDrying,PVC Spray or Coated, Inspecting Quality, Packing cargos, Shiping to destination

Techniques:Including galvanized before or after welding . It is divided into hot dipped , electro galvanizing , PVC coating , plastic sprayed . It has the characteristics of corrosion-resisting and oxidation-resisting.Usually galvanized after welding is better than galvanized before welded,Welded before galvanized wire mesh is more expensive than welded after galvanized welded wire mesh.

Application:Galvanized welded wire mesh is used as construction reinforcement,or in the industry, agriculture, aquaculture, building, communication and transportation and mineral extraction fields, etc. It also finds applications in shields on machinery or equipment, wire fence for livestock or flowers and trees, fence for protecting windows, fence for pathways, poultry cage, basket for holding eggs,foodstuff basket, paper basket or decorative functions in home or office.With larger diameter and opening,the galvanized welded wire mesh could be used as mesh fencing as well.

Packaging Details:Fence panel: plastic film + metal/wooden pallet

Fence post: plastic bag + metal/wooden pallet (with rainhat installed)

Fence accessories: plastic bag + carton box(clips & screws)

Specification List of Welded Wire Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.

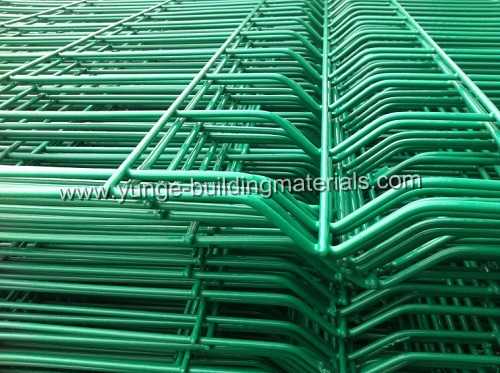

Galvanized/PVC Coated Fencing Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 75mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
5" x 5"	127mm x 127mm	2.0mm-4.0mm
6" x 6"	152.4mm x 152.4mm	2.0mm-4.0mm
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 2.5m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.


PVC Coated Welded Wire Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
