PVC coated iron wire

  • Material:Q195,Q235,SAE1006/1008 etc.
  • Tensile Strength:Min. 2100 kg/cm2 ( 210Mpa)
  • Type of coating: Polyviny chloride coating
  • Wire Gauge:0.3mm-5.0mm
  • Product description:
  • INQUIRY

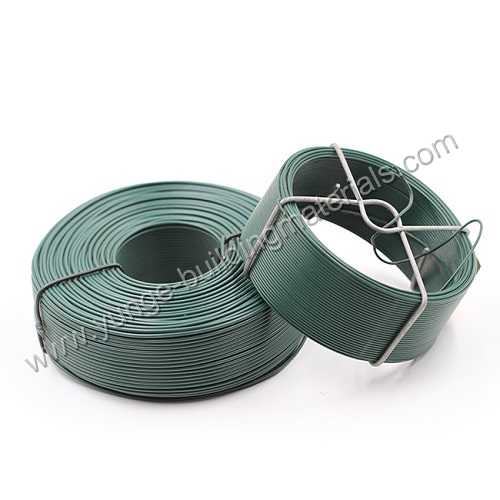

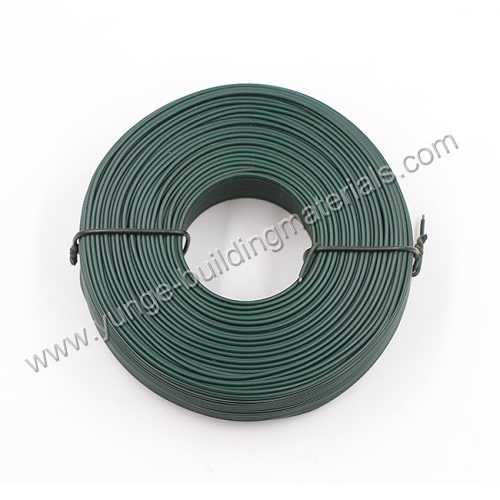

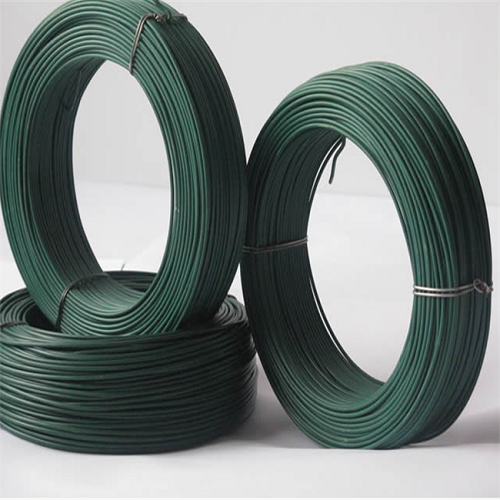

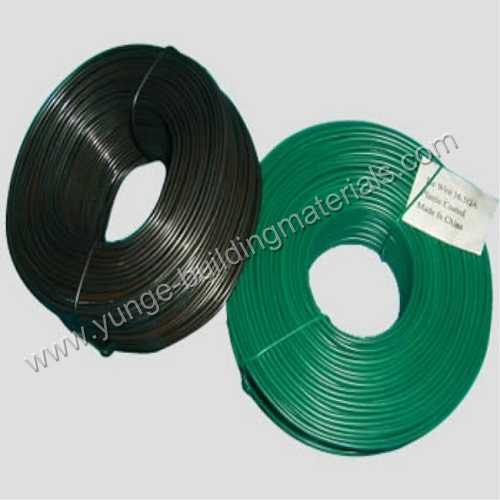

PVC coated insulation iron wire

Quick Details

Material:Q195,Q235,SAE1006/1008 etc.

Tensile Strength:Min. 2100 kg/cm2 ( 210Mpa)

Coil weight:5kg-800kgs/coil

Type of coating: Polyviny chloride coating

Wire Gauge:0.3mm-5.0mm

Elongation:10%-15%

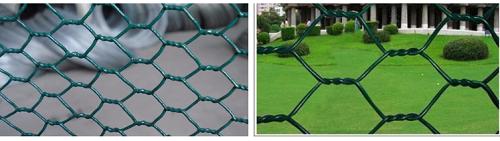

Application:mesh weaving, crafts making, daily binding

PVC coated layer: 0.4mm - 1.5mm.(+0.05mm/-0.05mm Max).

Colors: green, gray, white, blue, black, yellow, red, etc.

Features: anti-aging, anti-cracking, corrosion and abrasion resistant, durable.

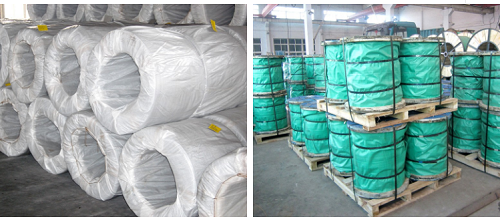

Packing:Inside with plastic film,outside with hessian cloth or woven bag. Our packing also support carton and wooden pallet.

Supply Ability:100000 Tons per year

Lead Time :15 days after receiving deposit

MOQ: We accept small orders


PVC Coated iron wire usual required diameter
BWG Diameter After Coated
8# 4.06mm 4.99mm
10# 3.25mm 4.15mm
12# 2.64mm 3.20mm
14# 2.03mm 2.60mm
16# 1.63mm 2.00mm
18# 1.22mm 1.52mm
20# 0.91mm 1.20mm
22# 0.71mm 1.00mm
24# 0.56mm 0.86mm
26# 0.46mm 0.70mm
28# 0.375mm 0.68mm
30# 0.315mm 0.60mm
33# 0.250mm 0.50mm
35# 0.210mm 0.48mm
