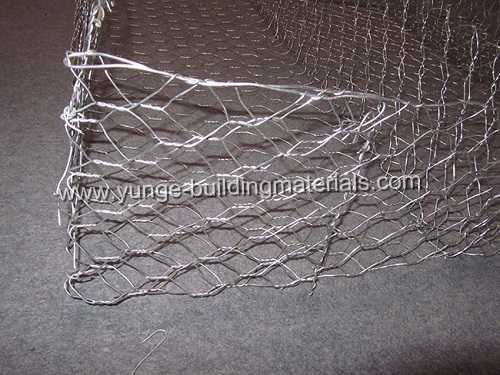

Gabion box Stone Cage Mesh With Diaphragm

Wire thickness:mesh wire2mm-4mm,selvedge wire/edge wire2.5mm-5mm,lacing wire/tie wire/bonding wire2.2mm
Aperture size:60*80, 70*90, 80*100, 90*110, 100*120, 110*130, 120*150, 180*220, 220*250mm
Box size:1.5mX1mX1m, 2mX1mX1m, 3mx1mx1m, 4mx1mx1m, 1.5mx0.5mx0.5m, 2mx1mx0.5m (as per requirement)
Tensile strength: 350-500Mpa,≥ 38 kg/m 2
Product description：
INQUIRY

Gabion box Stone Cage Mesh With Diaphragm

Quick Details

Material: 1) Hot-dip galvanized low carbon steel wire; 2) Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3 times more than hot-dip galvanized gabion; 3) PVC coated , PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of colors

Wire thickness:mesh wire2mm-4mm,selvedge wire/edge wire2.5mm-5mm,lacing wire/tie wire/bonding wire2.2mm

Aperture size:60*80, 70*90, 80*100, 90*110, 100*120, 110*130, 120*150, 180*220, 220*250mm

Box size:1.5mX1mX1m, 2mX1mX1m, 3mx1mx1m, 4mx1mx1m, 1.5mx0.5mx0.5m, 2mx1mx0.5m (as per requirement)

Electro galvanized amount:≤ 10 g/m 2

Hot dip galvanized amount: mesh wire≥230g/m 2,selvedge wire/edge wire≥245g/m 2,lacing wire/tie wire≥230g/m 2

Elongation ≥12%,according to EN10223-3

PVC thickness:1mm

Tolerance:±5%

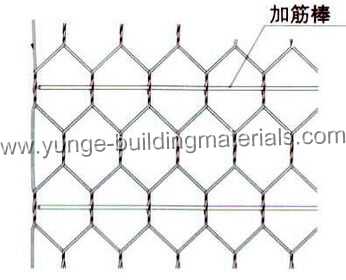

Hole Shape:Hexagonal

Tensile strength: 350-500Mpa,≥ 38 kg/m 2

Weight:apprx 12.8kgs for 1.5mX1mX1m

Supply Ability:15000Square Meters per Week

Lead Time:15-20 days after receiving the prepayment

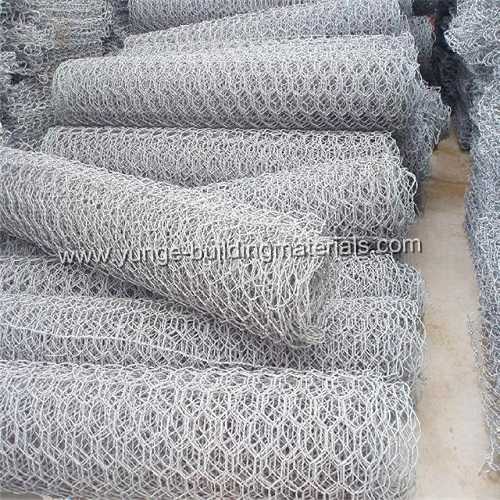

Hexagonal Gabion Wire Mesh Specification
LengthWidthHeight		2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m or Customized
Mesh Size		6080; 80100; 100*120 as standard, or customized
Wire Diameter		2.0mm to 4.0m or customized
Surface Finish		Electro Galvanized
		Hot Dipped Galvanized
		Galfan Coated

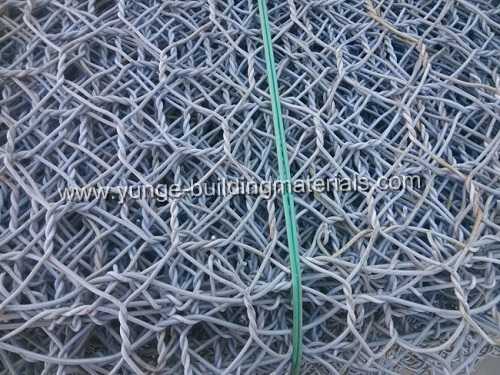

		PVC Coated

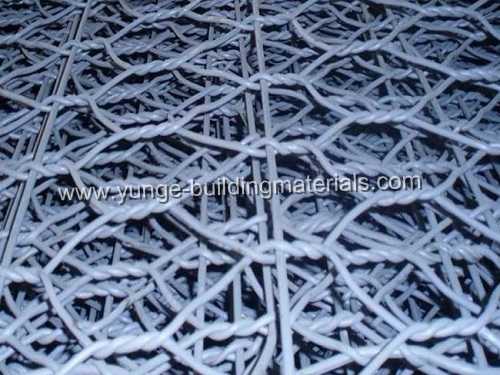

Weaving		Double Twist

PVC Coated Gabion Box Specification
Opening (mm)	Wire Diameter(Metal Wire) (mm)		Wire Diameter (PVC Coate)/ Inner/Outside(mm)

60X80	φ2.0-2.8		φ2.0/3.0-2.5/3.5
80X100	φ2.0-3.2		φ2.0/3.0-2.8/3.8
80X120	φ2.0-3.2		φ2.0/3.0-2.8/3.8
100X120	φ2.0-3.4		φ2.0/3.0-2.8/3.8
100X150	φ2.0-3.4		φ2.0/3.0-2.8/3.8
120X150	φ2.0-4.0		φ2.0/3.0-3.0/4.0

Specifications of 2x1x1 gabion box/gabion basket
Item	Mesh Size	Type 1	Type 2	Zinc Coating	Tensile Strength
Item	Mesh Size	Wire Diameter	Wire Diameter	Zinc Coating	Tensile Strength
Mesh wire	80 x100mm	2.7±0.1mm	3.0±0.1mm	240±10 g/m2	485 MPa max
Selvedge wire	100x120mm	3.4±0.1mm	4.0±0.1mm	260±10 g/m2	485 MPa max
Lacing wire	as per request	2.2±0.1mm	2.2±0.1mm	220±10 g/m2	515 MPa max
