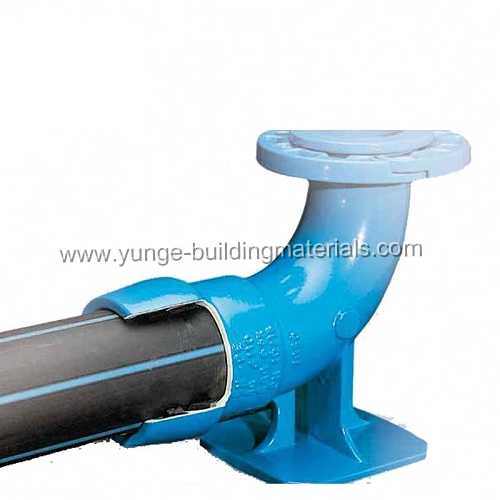

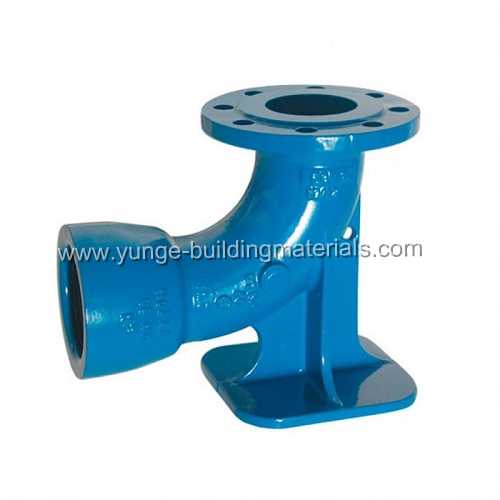

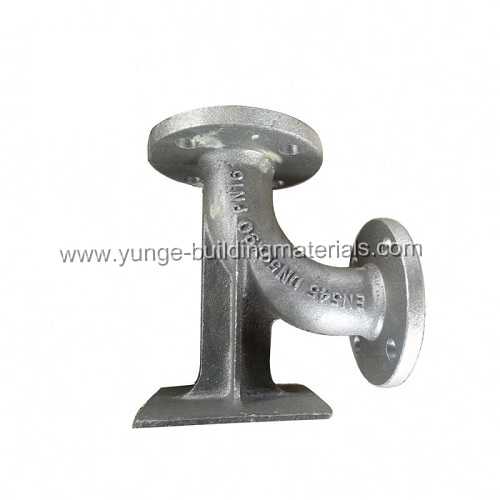

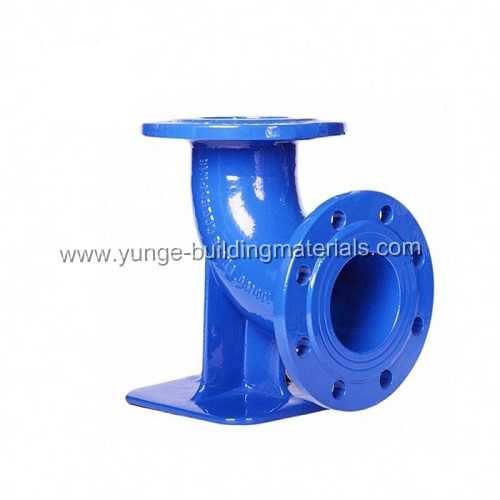

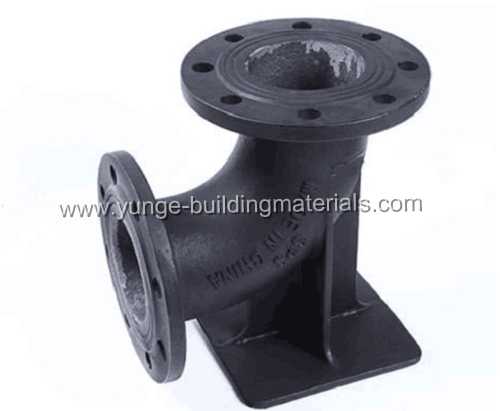

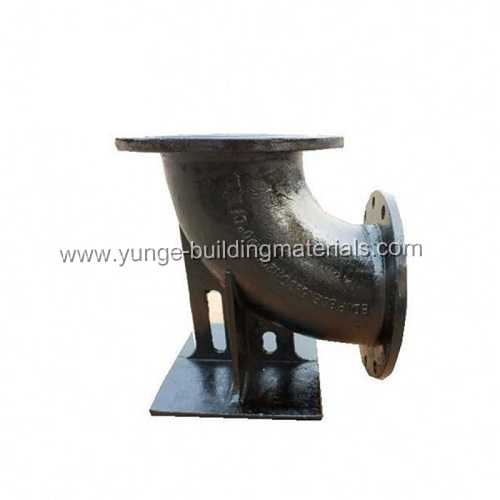

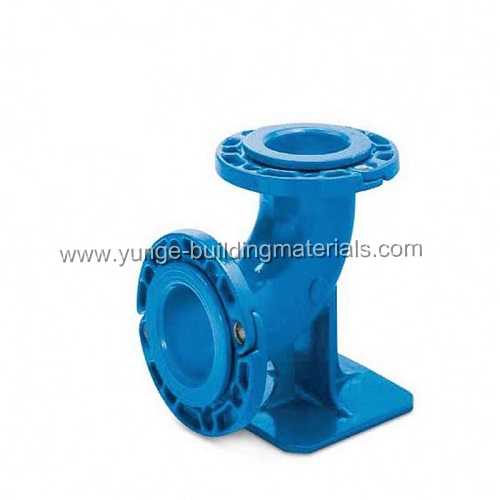

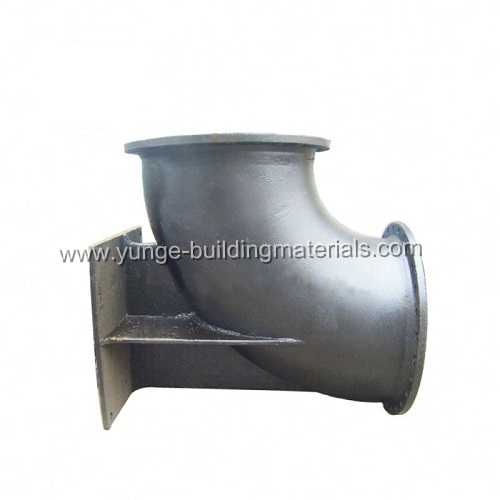

Duck foot bend ISO2531 EN545 Ductile iron

Duck foot bend ISO2531 EN545 Ductile iron

Quick Details

Size:DN80-DN2000mm

Standard:ISO2531-1998,EN545-2006/EN598, Class:K8,K9,K12,k14

Length:6M for bulk shipment, 5.7M for 20' or 40' container shipment

Inner coating:Cement lining according to ISO4179/FBE coating (Fusion bonded Epoxy Coating)

Outside coating:Zinc+bitumen coating according to ISO8179/FBE coating (Fusion bonded Epoxy Coating)

Zinc coating:At least 130g/m2 as per ISO8179

Working pressure:PN10/PN16/PN25 as per standards

Application:Water pipelines,irrigation system

Features:High strength,lighter than gray iron,corrosion resistance,no furring,small flow resistance,easy fixing,long life time

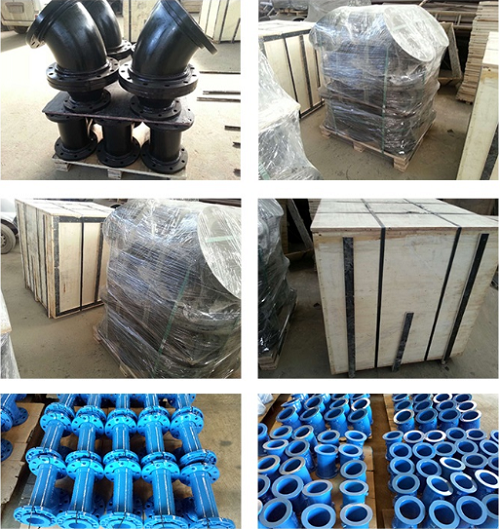

Packaging:Wooden cases or pallets

Lead time:25-30 days after receiving the deposit

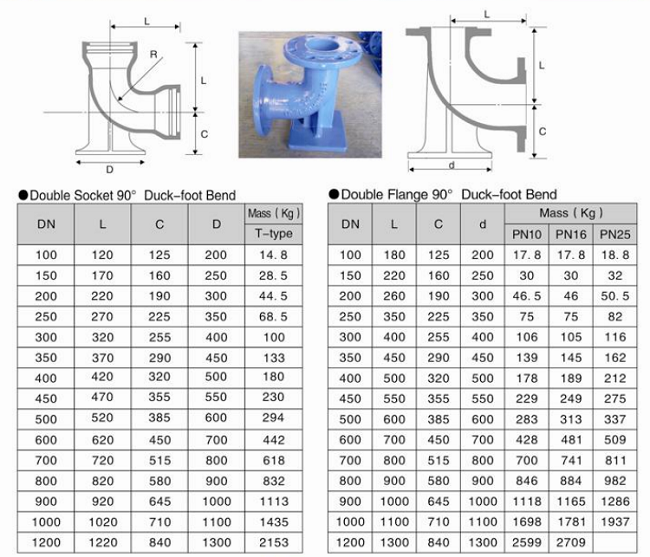

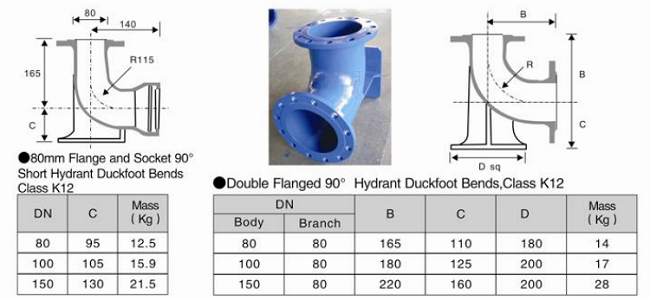

Specification:

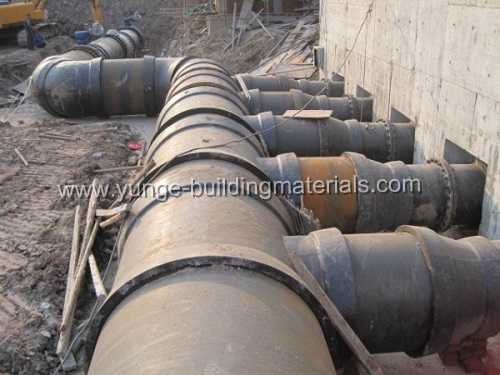

Application

Packaging
