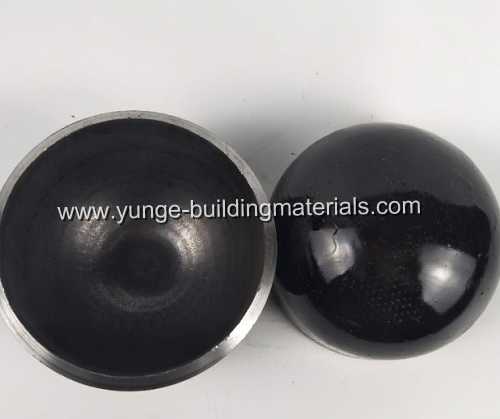

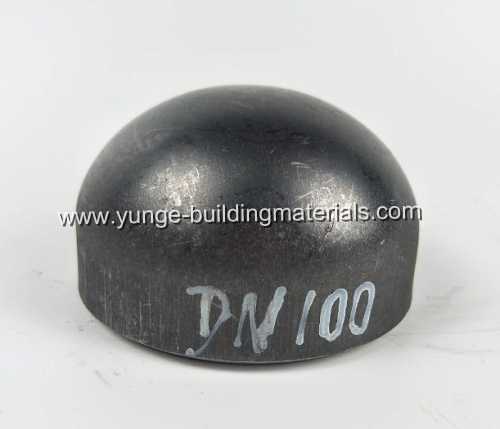

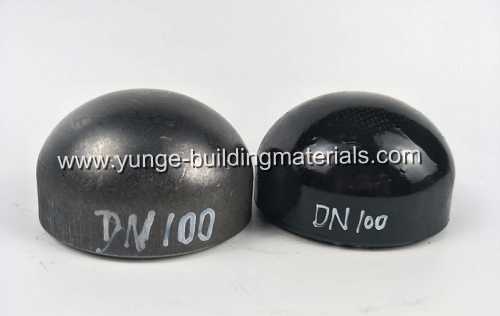

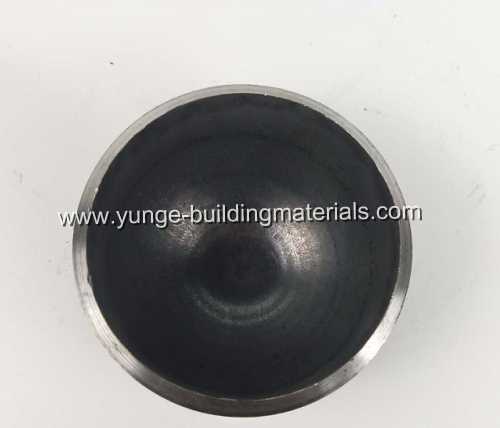

Butt welding cap Chilled Water Pipe fittings ASTM A234 Gr.WPB

Butt welding fittings Chilled Water Pipe fittings ASTM A234 Gr.WPB

Quick Details

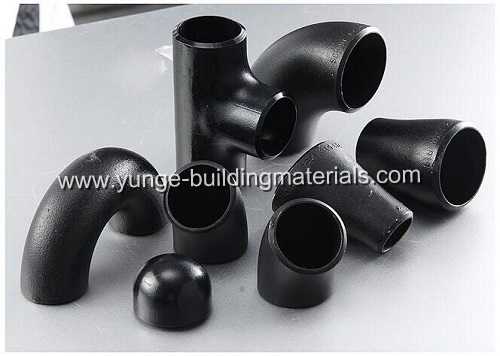

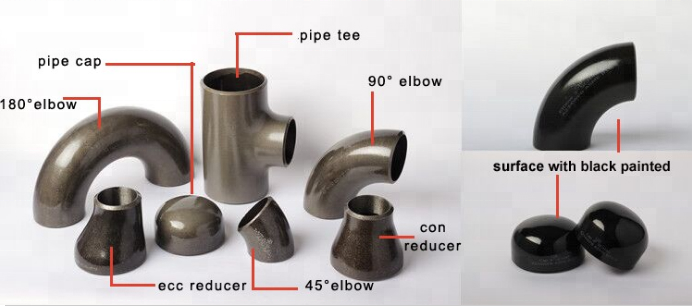

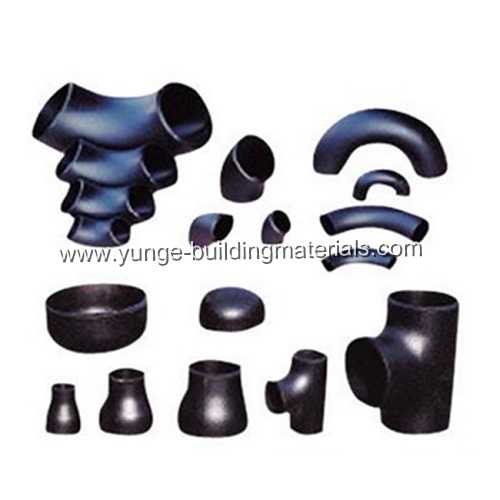

Model:Tee(Straight and Reducing);Elbow (45/90/180 DEG);Cap;Reducer(Concentric and Eccentric)

Size: 1/2"-48"(1/2"-24"is seamless and 26"-48"is welded)

Wall thickness: Sch10-160, STD, XS, XXS

Material: A234WPB, A420WPL6, A420WP5, WP11, WP12, WP22, etc

Welding line: seamless

Angle of bend: 30, 45, 90, 180 degree

Bending radius: SR, LR

Standard: ANSI B16.9, JIS, SB, DIN, GB

Surface treatment:Black paint,vanish coating,black rust-proof oil,transparent oil, hot galvanizing

Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test

Application:Petroleum, electricity, chemical, natural gas, metallurgy,construction, ship building and other fields with high pressure, high temperature, etc

Connection: Welding

Technics:Forged

Packing: Wooden case, pallet, container or in accordance with requirement

Delivery time: 7-25 days after payments

Notes: The bevel can be made in accordance with the special requirements
